UNITRACK Ground Level Track Sections

DescriptionImage MSRP Our $ Part #
Straight Track
258mm (9 3/4") Straight Track, 4 Ea.$10.00 $8.00 KAT-20-000
186mm (7 5/16") Straight Track, 4 Ea. $9.50 $7.60 KAT-20-010
124mm (4 7/8") Straight Track, 4 Ea. $9.00 $7.20 KAT-20-020
64mm (2 1/2") Straight Track, 2 Ea. $3.75 $3.00 KAT-20-030
62mm (2 7/16") Straight Track, 4 Ea. $7.00 $5.60 KAT-20-040
186mm (7 5/16") Ash Pit Track [2 pcs] $7.00 $5.60 KAT-20-015

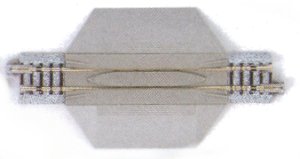

124mm (4 7/8") Re-Railer Track [2 pc]
Includes 2 double track adapter pieces
$6.00 $4.80 KAT-20-026
64mm (2 1/2") Magnetic Uncoupler Track $6.00 $4.80 KAT-20-032
62mm (2 7/16") Feeder Track $5.00 $4.00 KAT-20-041
62mm (2 7/16") Snap Track Conversion Track, 2 Ea. $3.00 $2.40 KAT-20-045
78-108mm (3" to 4 1/4") Expansion Track $8.25 $6.60 KAT-20-050
Track Assortment 8 Ea. 29mm (1 1/8"), 2 Ea. 45.5mm (1 3/4") $15.75 $12.60 KAT-20-091
Bumpers
62mm (2 7/16") Straight Track Bumper A, 2 Ea. $8.00 $6.40 KAT-20-046
64mm (2 1/2") Straight Track Bumper B, 2 Ea. $8.00 $6.40 KAT-20-047
64mm (2 1/2") Straight Track Bumper C, 2 Ea. $8.25 $6.60 KAT-20-048
66mm (2 5/6") Illuminated Bumper Track Type A [1 pc]
Has light-up signal - operates off track power [DCC Compatible]
$13.00 $10.40 KAT-20-063
66mm (2 5/6") Illuminated Bumper Track Type C [1 pc]
Has light-up signal - operates off track power [DCC Compatible]
$13.00 $10.40 KAT-20-064
Curved Track
249mm (9 3/4") Radius 45° Curved Track, 4 Ea. $9.00 $7.20 KAT-20-100
249mm (9 3/4") Radius 15° Curved Track, 4 Ea. $7.50 $6.00 KAT-20-101
282mm (11") Radius 45° Curved Track, 4 Ea. $10.00 $8.00 KAT-20-110
282mm (11") Radius 15° Curved Track, 4 Ea. $7.50 $6.00 KAT-20-111
315mm (12 3/8") Radius 45° Curved Track, 4 Ea. $10.00 $8.00 KAT-20-120
315mm (12 3/8") Radius 15° Curved Track, 4 Ea. $7.50 $6.00 KAT-20-121
348mm (13 3/4") Radius 30° Curved Track, 4 Ea. $9.00 $7.20 KAT-20-130
348mm (13 3/4") Radius 45° Curved Track, 4 Ea. $11.00 $8.80 KAT-20-132
381mm (15") Radius 30° Curved Track, 4 Ea. $9.00 $7.20 KAT-20-140
718mm (28 1/4") Radius 15° Curved Track, 4 Ea. $9.00 $7.20 KAT-20-150
481mm (19") Radius 15° Curved Track, 4 Ea. $8.25 $6.60 KAT-20-160
216mm (8 1/2") Radius 45° Curved Track, 4 Ea. $9.00 $7.20 KAT-20-170
216mm (8 1/2") Radius 15° Curved Track, 4 Ea. $7.50 $6.00 KAT-20-171
183mm (7') Radius 45° Curved Track, 4 Ea. $12.00 $9.60 KAT-20-172
150mm (6') Radius 45° Curved Track, 4 Ea. $10.00 $8.00 KAT-20-174
CV1 Compact Oval Set
Eight 6" 15.2cm Radius Curves & Four 4-7/8" 12.4cm Straights
$35.00 $28.00 KAT-20-890
CV-2 Compact Multi-Purpose Turnout Set
$78.00 $62.40 KAT-20-891
Turnouts
#6 Left Turnout with 718mm (28 1/4") Radius 15° Curved Track $27.00 $21.60 KAT-20-202
#6 Right Turnout with 718mm (28 1/4") Radius 15° Curved Track $27.00 $21.60 KAT-20-203
#4 Left Turnout with 481mm (19") Radius 15° Curved Track $37.50 $30.00 KAT-20-220
#4 Right Turnout with 481mm (19") Radius 15° Curved Track $37.50 $30.00 KAT-20-221
Double Crossover Turnout 310mm (12 3/16") $75.00$60.00 KAT-20-210
#2 Wye Turnout -- Remote Control $35.00$28.00 KAT-20-222
Double Track Single Crossover (Left)

#4 Crossover
248mm (9 ¾”) total length
Concrete ties with Synthetic Resin tie appearance in the crossing section
$49.00$39.20 KAT-20-230
Double Track Single Crossover (Right)

#4 Crossover
248mm (9 ¾”) total length
Concrete ties with Synthetic Resin tie appearance in the crossing section
$49.00$39.20 KAT-20-231
Crossings
186mm (7 5/16") Left Hand 15° Crossing $11.00 $8.80 KAT-20-300
186mm (7 5/16") Right Hand 15° Crossing $11.00 $8.80 KAT-20-301
DescriptionImage MSRP Our $ Part #
124mm (4 7/8"") 90° Crossing $17.50 $14.00 KAT-20-320
Concreate Tie Double Track
248mm (9 3/4") Concrete Tie Double Track Straight [2 pcs]$9.50 $7.60 KAT-20-004
248mm 9-3/4" Double Track Straight, Concrete Slab (2)$9.50 $7.60 KAT-20-006
186mm (7 5/16") Concrete Tie Double Track Straight [2 pcs] $8.25 $6.60 KAT-20-012
186mm 7-5/16" Double Track Straight, Concrete Slab (2) $8.50 $6.80 KAT-20-014
124mm (4 7/8") Concrete Tie Double Track Straight [2 pcs] $7.75 $6.20 KAT-20-023
124mm 4-7/8" Double Track Straight, Concrete Slab (2) $7.80 $6.24 KAT-20-025
62mm (2 7/16") Concrete Tie Double Track Straight [2 pcs] $6.75 $5.40 KAT-20-042
62mm (2 7/16") Concrete Tie Double Track Feeder [2 pcs]
- Includes two track power leads and regular 2 7/16" straight track piece
$13.00 $10.40 KAT-20-043
62mm 2-7/16" Double Track Straight, Concrete Slab (2) $6.50 $5.20 KAT-20-044
62mm 2-7/16" Double Track Feeder, Concrete Slab (2) $12.50 $10.00 KAT-20-049
Unitrack Concrete-Tie Double-Track Widening Section -- Left Hand 12-3/16" 31cm Long [1 pcs]
$18.00 $14.40 KAT-20-051
Unitrack Concrete-Tie Double-Track Widening Section -- Right Hand 12-3/16" 31cm Long [1 pcs]
$18.00 $14.40 KAT-20-052
381mm/414mm Radius 45º (15" - 16 3/8") CT Double Track Superelevated Curve Track [2 pcs] $11.00 $8.80 KAT-20-181
381mm/414mm Radius 22.5º (15" - 16 3/8") CT Double Track Easement Curve Track Right and Left $7.50 $6.00 KAT-20-182
282mm/315mm Radius 45º (11" - 12 3/8") CT Double Track Superelevated Curve Track [2 pcs] $10.00 $8.00 KAT-20-183
282mm/315mm Radius 45º (11" - 12 3/8") CT Double Track Easement Curve Track Right and Left $6.50 $5.20 KAT-20-184
18.9"/17.6" 45-Degree Dbl Curve, Concrete Tie(2)
$15.00 $12.00 KAT-20-185
18.9"/17.6" 45-Degree Dbl Curve, Concrete Tie $9.50 $7.60 KAT-20-186
16.3"/15" 45-Degree Dbl Curve, Concrete Tie (2)
$10.50 $8.40 KAT-20-187
16.3"/15" 45-Degree Dbl Curve, Concrete Tie $9.50 $7.60 KAT-20-188
Unitrack Concrete-Tie Single-Track Section -- Expands V15 Set 9-3/4" 24.8cm Long (4 Pcs) $10.50 $8.40 KAT-20-875
