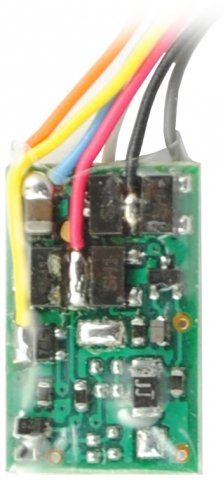

M1-KA- Two Function Decoder
Part #TCS-M1-KA N Scale Supply price: $37.56
New: April 2019


Electronic Specifications:

  • 1.0 amp Motor drive rating
  • Two amp peak load
  • Two 100mA function outputs
Size:

  • Length: 0.587"
  • Width: 0.365"
  • Height: 0.135"

Click here for more Info.

Features:
  • The M1 is a small form factor hard-wire decoder for HO and N scale installations. This decoder is designed for installations where space is limited. The M1-KA is equipped with an additional Blue and Black w/ White Stripe wire for use with a TCS Keep Alive™. In order to use Keep Alive™ with this decoder, simply solder the wires from the Keep Alive™ to the wires on the decoder.

    Also see the KAM4, which is a M-series decoder with on-board Keep Alive™. The M1-KA can be used in situations where the Keep Alive™ device must be mounted elsewhere.

  • Back EMF Load Compensation: Provides superior slow speed control and high performance under load.

  • Quiet Drive: Super-quiet motor control for "buzz" free motor performance.

  • DC Mode: Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.

  • RailCom®: This feature allows the decoder to talk to the command station. RailCom supports expansion for new features.

  • Variable Momentum: Allows you to make custom acceleration and deceleration curves.

  • Incandescent Bulb Support: This decoder can be used with 12 Volt bulbs.

  • Function Remapping: Buttons 0 through 12 may be used to control the lighting functions of this decoder.

  • Programmable Lighting Effects: Choose from 20 separate user-programmable lighting effects!

  • Dimmable Brightness: Configure multiple different brightness levels for your LED's or incandescent bulbs.

  • Decoder Lock: Feature which prevents accidental/unwanted programming while activated.

  • Airwire™ Compatible: Fully compatible with Airwire™ operation.

  • User-Loadable Speed Tables: Configure custom speed curves and set speed limits.
