DCC Decoder Installation: Kato SD80/90MAC
 |
Step 3: DECODER PREPARATION
- Clip the various wires on the decoder according to the above picture.
|
 |
- Strip about 3/32" of the installation from each wire.
- Tin each wire end (heat up each wire end and flow a very small amount of solder onto it)
|

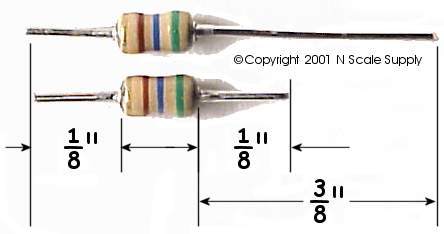

- Take the two 560 ohm 1/8 Watt resistors and clip the leads according to the diagram
|
 |
|
|
